Product Description
Details:
- Sensor: 26M/IMX571(Monochrome)
- Sensor Size(mm): 1.8 "(23.48x15.67) APS-C
- Pixel(μm): 3.76x3.76
- FPS: 6.8@6224x4168(16bit), 14@6224x4168, 37@3104x2084, 110@2064x1386
- Binning: 1x1
- Exposure: 0.1ms~3600s
- USB Port: USB3.0 High-speed Port
Features:

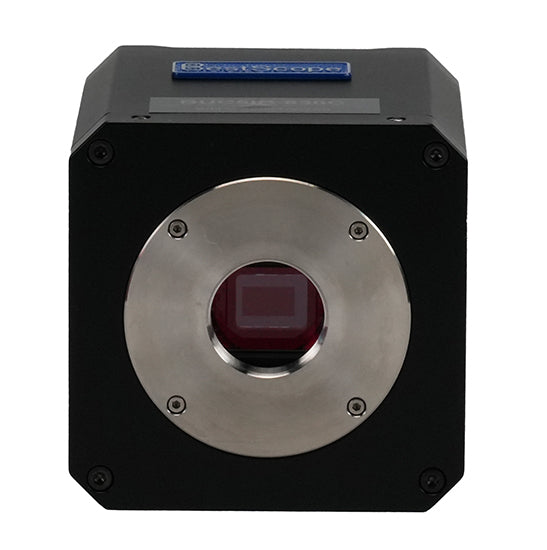

- Standard C-Mount camera with SONY Exmor CMOS sensors 26.0M;

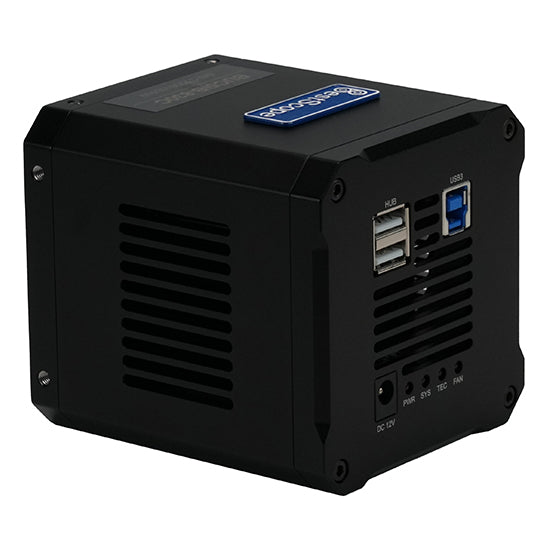

- Two-stage TE-cooling with controllable electric fan;
- Sensor chip cooling up to 42°C below ambient temperature;
- Working temperature can be regulated to specified temperature in 5 minutes;
- Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
- IR-CUT/ARcoated windows;
- Up to 1 hour long time exposure;
- USB3.0 5Gbit/second interface ensuring high speed data transmission;
- Ultra-FineTMcolor engine with perfect color reproduction capability;
- With advanced video & image processing application ImageView;
- Support both video and trigger modes;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain control API.

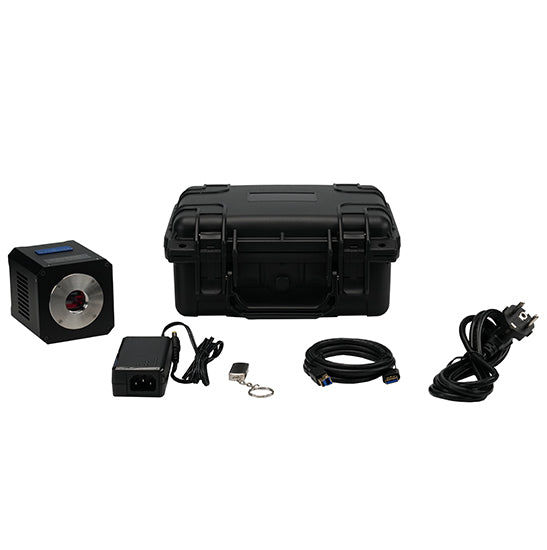

Packing Information:
- 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size: L:28.2cm W:25.2cm H:16.7cm (TBD)
- BUC5IB-2600M camera(C-mount)
- Drying tube and desiccant
- Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A
- High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m
- USB flash disk (Driver & utilities software)
